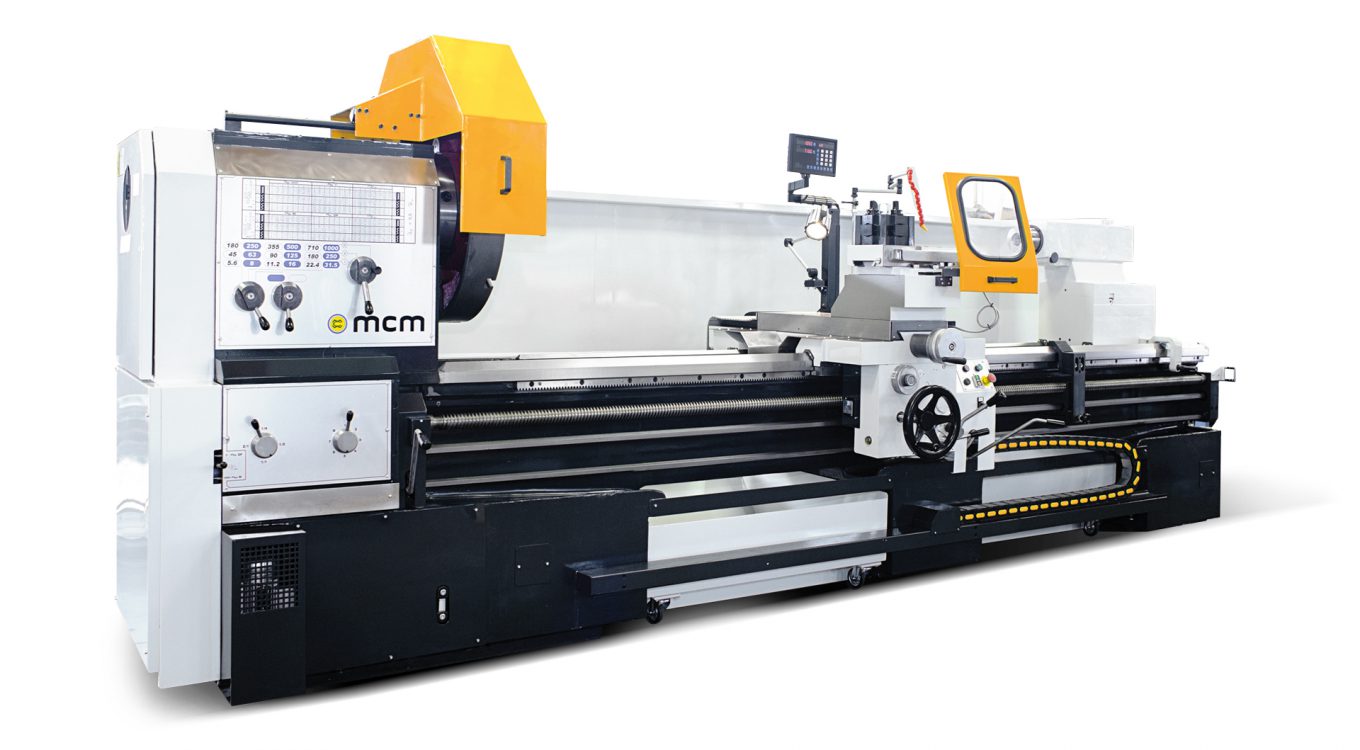

TECHNICAL SPECIFICATIONS		400	500	550	600
Height of centres	mm	400	500	550	600
Swing over bed	mm	800	1000	1100	1200
Swing over cross slide	mm	500	670	750	850
Distance between centres	mm	1500… 12000
Bed width	mm	600
Spindle bore	mm	100
Spindle nose	ASA	11″
Infinitively variable spindle speeds (Inverter)	rpm	N. 4 ranges from 6 up to 800 rpm
Main motor power (S6/S1)	Kw	18.5 (22 – 30)
Range of longitudinal feeds	mm/rev	(64) 0.08 – 9.6
Range of transversal feeds	mm/rev	(64) 0.04 – 4.8
Range of transversal feeds	mm/rev	(64) 0.02 – 2.4
Range of threads Metric	mm	(53) 1 – 120
Range of threads Whitworth	T.P.I.	(49) 30 – 1/4
Range of threads Module	mm	(54) 0.5 – 60
Range of threads Diametral Pitch	DP	(56) 1/2 – 60
Cross slide travel	mm	500	600
Cross slide travel	mm	270
Tailstock quill diameter	mm	120 (200 rotating quill)
Tailstock quill travel	mm	250
Tailstock quill taper	Morse	6
Maximum weight of workpiece between centers	Kg	5000 (7000)

WEIGTH		400	500	550	600
Weight of the lathe of 3000 mm (D.B.C.)	Kg	8500	8800	9100	9400
Each additional meter	Kg	+1200
