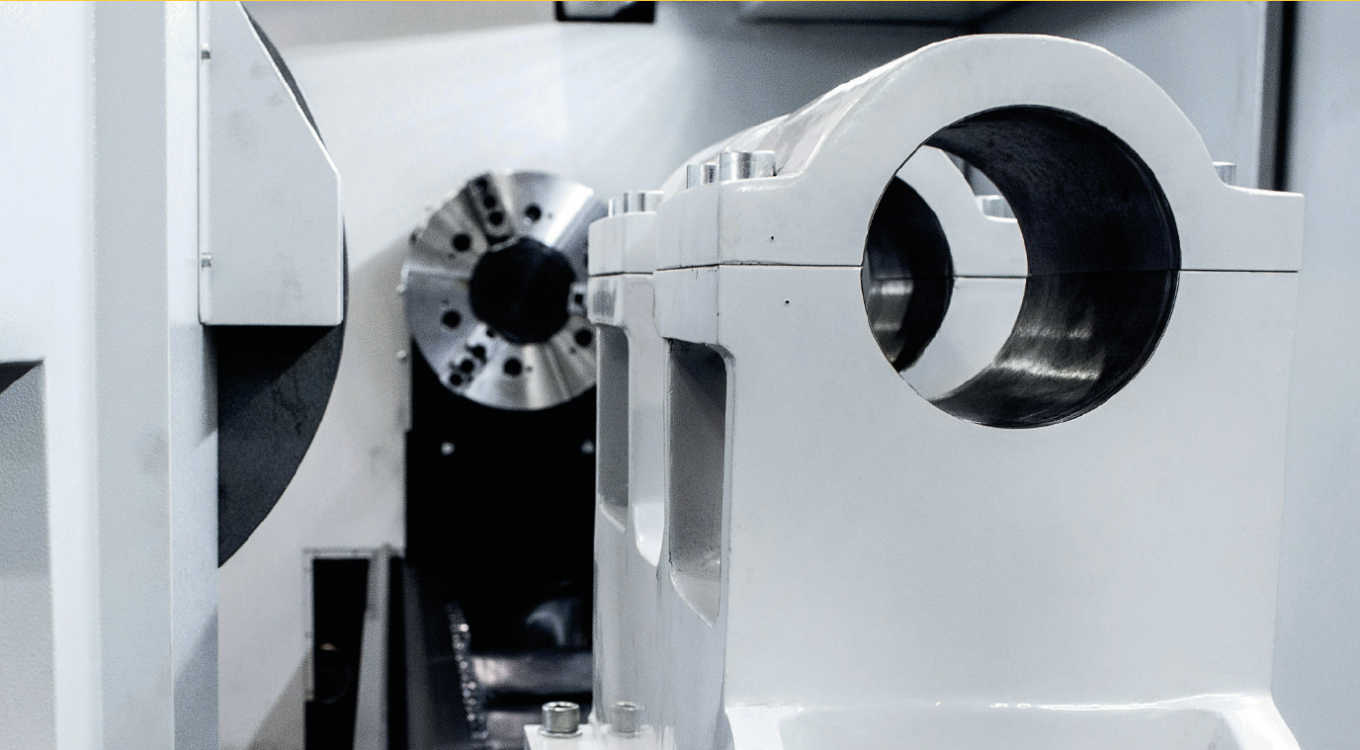

ATL HEAVY evo

TECHNICAL SPECIFICATIONS400500550600
CNCMod.Fagor
(Fanuc / Siemens / Heidenhain)
Height of centresmm400500550600
Swing over bedmm800100011001200
Diametro ammesso sulla slittamm500680750850
Distance between centersmm1500… 12000
Bed widthmm600
Number of guidewaysN.2
(3)
Maximum weight of workpiece between centersKg5000
(7000)
Spindle boremm100
(130)
Spindle noseAsa11″
Speed ranges (Automatic)N.2
Spindle speed rangerpm0:1200
Main motor power (S6/S1)Kw45/30
(56/37)
Cross slide travelmm500600
X-Z axis rapid traversem/min9
Tailstock quill diametermm120
(200 rotating quill)
Tailstock quill travelmm300
Tailstock quill taperMorse6
WEIGTH400500550600
Weight of the lathe of 3000 mm (D.B.C.)Kg11000114001180012200
Each additional meterKg+1500
